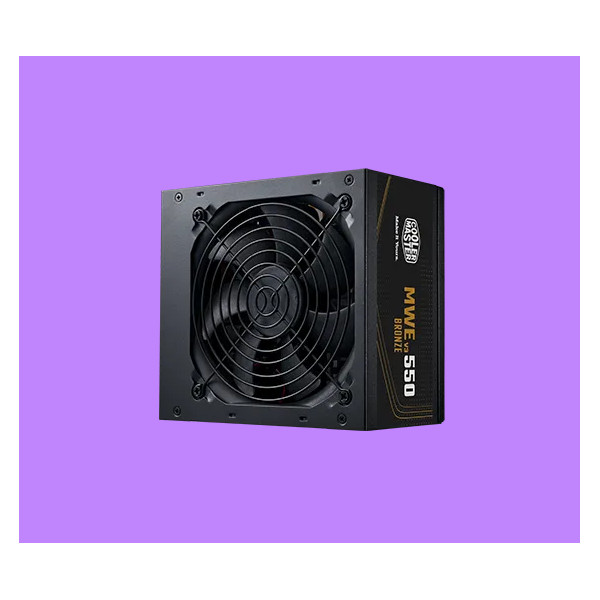

ModelMPE-5501-ACAAW-3B
ATX VersionATX 12V Ver. 3.1
PFCActive PFC
Input Voltage100-240V
Input Current8-4A
Input Frequency50-60Hz
Dimensions (L x W x H)140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch
Fan Size120mm
Fan BearingHDB
Efficiency>85% @ Typical Load
80 PLUS Rating80 PLUS Bronze
ErP 2014 Lot 3Yes
Operating Temperature0-40°C
Power Good Signal100 - 150 ms
Hold Up Time>16ms
MTBF>100,000 Hours
ProtectionsUVP / OVP / OPP / OTP / SCP
RegulatorycTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)
ATX 24 Pin Connectors1
EPS 4+4 Pin Connectors2
SATA Connectors6
Peripheral 4 Pin Connectors3
PCI-e 6+2 Pin Connectors2
Warranty5 Years
SeriesMWE Bronze Series
Category500 to 750W
ModularNon Modular
80 Plus EfficiencyBronze
Form FactorATX
Watts550W
