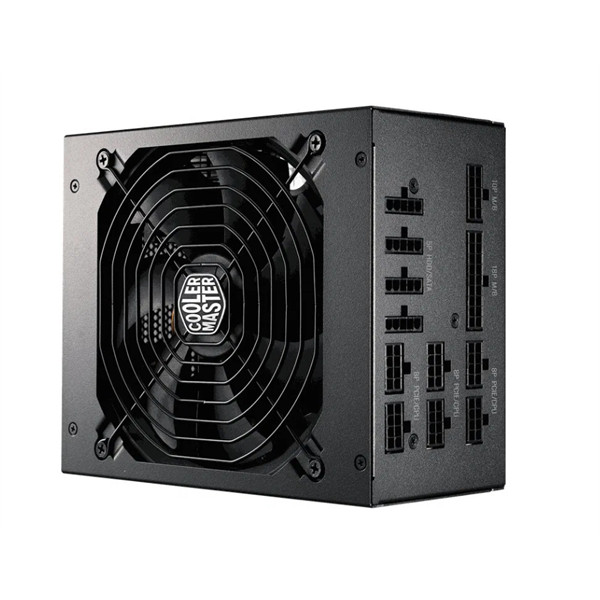

ModelMPE-A501-AFCAG
ATX VersionATX 12V V2.52
PFCActive PFC
Input Voltage100-240V
Input Current13-6A
Input Frequency47-63Hz
Dimensions (L x W x H)180 x 150 x 86 mm
Fan Size140mm
Fan BearingFDB
Fan Speed2200 RPM
Noise Level @ 20%0 dBA
Noise Level @ 50%14.9 dBA
Noise Level @ 100%27.3 dBA
Efficiency≥90% @ Typical Load
80 PLUS Rating80 PLUS Gold
ErP 2014 Lot 3Yes
Operating Temperature0-50°C
Power Good Signal100 - 150 ms
Hold Up Time>20ms at 100% Load
MTBF>100,000 Hours
ProtectionsUVP / OVP / OPP / OTP / SCP / OCP
RegulatoryTUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB, UKCA
ATX 24 Pin Connectors1
EPS 4+4 Pin Connectors1
EPS 8 Pin Connector1
SATA Connectors12
Peripheral 4 Pin Connectors4
PCI-e 6+2 Pin Connectors6
Warranty10 Years
SeriesMWE Gold Series
CategoryAbove 750W
ModularFully Modular
80 Plus EfficiencyGold
Form FactorATX
Watts1050W
