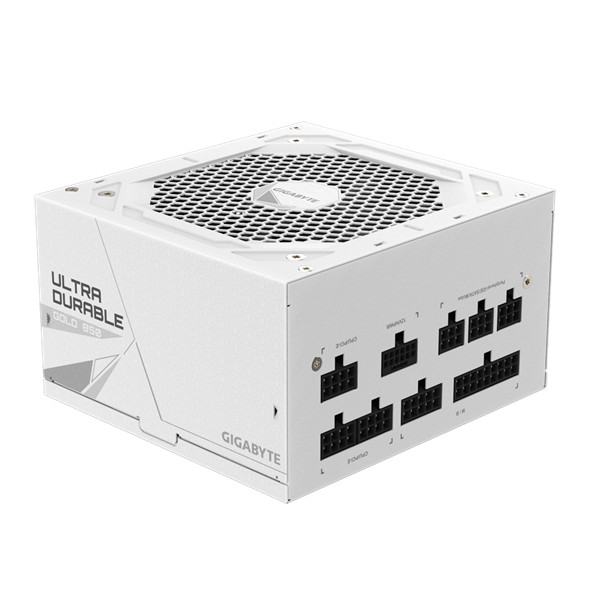

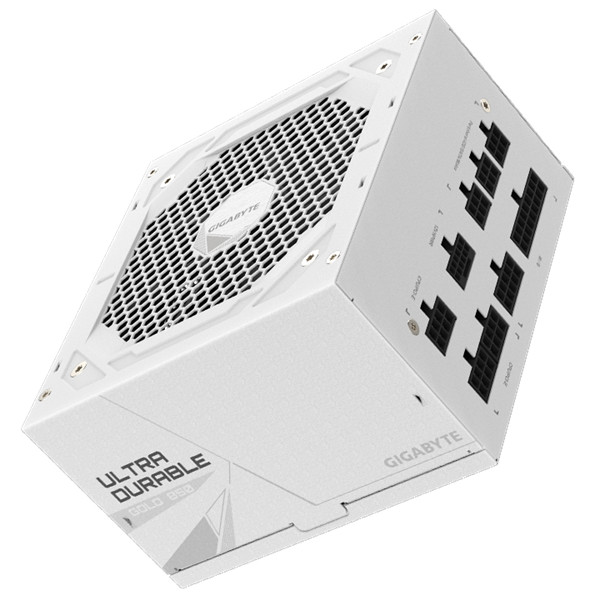

GIGABYTE Tápegység 850W 80+ Gold moduláris Gen 5.0

• Model

  GP-UD850GM PG5W

• Type

  Intel Form Factor ATX 12V v3.0

• PFC

  Active PFC (>0.9 typical)

• Input Voltage

  100-240 Vac (full range)

• Input Current

  12-6A

• Input Frequency

  60-50 Hz

• Output Capacity

  850W

• Dimension

  150 x 140 x 86 mm

• Fan Type

  120mm Hydraulic Bearing(HYB)fan

• 80 PLUS

  Gold

• Efficiency

  90% at typical load

• MTBF

  >100,000 hours

• Protection

  OVP/OPP/SCP/UVP/OCP/OTP

• Power Good Signal

  100-150ms

• Hold Up Time

  >16ms

• Cable Type

  Flat, All white

• Connectors

  ATX/MB 20+4 Pin x 1 : 610mm*1
  CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
  PCI-e 16 Pin x 1: 700mm*1
  PCI-e 6+2 Pin x 4 : 600mm+150mm*2
  SATA x 8 :
  600mm+150mm+150mm+150mm*2
  4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
