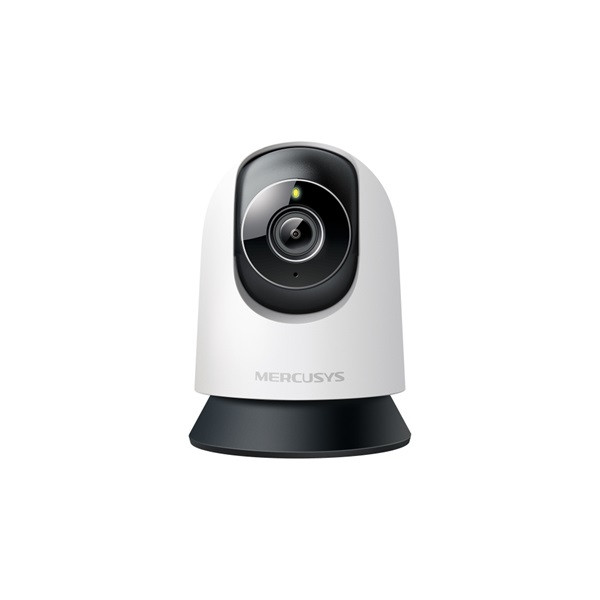

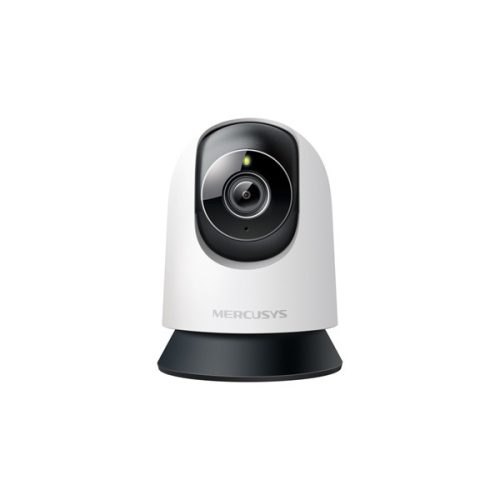

MERCUSYS Wireless Kamera Cloud beltéri éjjellátó AI támogatás, MC230

Image Sensor



1/2.7'' Progressive Scan CMOS Not Starlight Sensor



Lens



Focal Length: 4 mm
Aperture: F2.0
Field of View: 103° (Diagonal), 86°(Horizontal), 46°(Vertical)



Motion Range



Pan Mechanical Range: 340° (360° Pan Coverage)
Tilt Mechanical Range: 70° (116° Tilt Coverage)



Night Vision



850nm IR LED (40 ft / 12 m)



Interface & Button



1× RESET Button
1× MicroSD Card Slot (Up to 512 GB)

Camera

Maximum Resolution



3K 5MP (2880×1620 px)



Digital Zoom



Supports 13.5x zoom



Frame Rate



15/20/25/30 fps (20 fps by default)



Video Compression



H.264



Live View



Yes



Image Enhancement



3DNR
BLC



Audio Input & Output



Built-in microphone and speaker



Audio Communication



2-way audio



Siren Volume



90dB (Level measured at 4-inch/10-cm distance)

Video & Audio

Local Storage



Micro SD card slot
(Supports up to 512GB)



Cloud Storage



MERCUSYS Camera Care Cloud Storage Services (Subscription required)

Storage

Security



On-Device Machine Learning
128 bit AES encryption with SSL/TLS
WPA/WPA2-PSK

Software

Network Connectivity



Connect via Wi-Fi



Wireless Connectivity



11Mbps(802.11b)
 54Mbps(802.11g)
 72.2Mbps(802.11n)



Max. Distance Between Hub and Camera/Doorbell



/



RTSP



Yes



ONVIF



Yes

Network

Power Source



9V DC Power Adapter



Input Voltage



100-240VAC, 50/60Hz, 0.3A



Output Voltage



9.0V/0.6A

Power

Sensor



/



AI Detection



Motion detection
Person Detection
Baby Crying Detection
Vehicle Detection
Pet Detection
Meow Detection
Bark Detection
Glass-Breaking Detection



Activity Zones



Yes



Output Notification



System Notification

Detection & Notifications

Smart Integration



Google Assistant, Amazon Alexa, Samsung SmartThings



Weather Resistance



/



Mounting Options



Tabletop
Ceiling-Mounted



Operating Temperature



0 ºC ~ 40 ºC (32°F ~ 104°F )



Storage Temperature



-40°C~60°C (-40°F~140°F)



Operating Humidity



10%~90%RH, Non-condensing



Storage Humidity



0%~90%RH, Non-condensing



Charging Temperature



/



Dimensions ( W x D x H )



78.4 × 78.4 × 105.6 mm
(3.09 × 3.09 × 4.16 in)

General

Certifications



CE, NCC, BSMI, NTRA, KC, RCM, ONVIF



Package Contents



Pan/Tilt Home Security Wi-Fi Camera (MC230) × 1
Power Adapter × 1
Mounting Anchors × 2
Mounting Screws × 2
Mounting Template Sticker × 1
Quick Start Guide

Others
