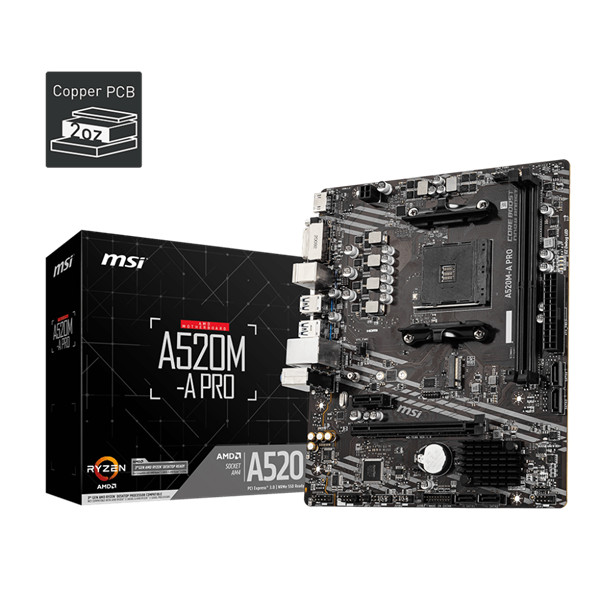

MSI Alaplap AM4 A520M-A PRO AMD A520, mATX
MSI Alaplap AM4 A520M-A PRO AMD A520, mATX
24 090 Ft

MSI Alaplap AM4 A520M-A PRO AMD A520, mATX

MSI Alaplap AM4 A520M-A PRO AMD A520, mATX
MSI Alaplap AM4 A520M-A PRO AMD A520, mATX
Bővebben
24 090 Ft
Hitelkalkulátor
Részletek

CPU

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors

See supported processors

CHIPSET

AMD A520 Chipset

MEMORY

  • 2x DDR4 memory slots, support up to 64GB 1
    • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
      • 1DPC 1R max speed 4600 MHz
      • 1DPC 2R max speed 3866 MHz
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
  1. Please refer www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOT

  • 1x PCIe 3.0 x16 slot (from AMD processor)1
    • Supports x16 speed with Ryzen™ 5000, 5000G, 4000G and 3000 processors
    • Supports x8 speed with Ryzen™ 3000G processors
    • Supports x4 speed with AMD® Athlon™ with Radeon Graphics processors
  • 1x PCIe 3.0 x1 slot
  1. The supported specification depends on installed processor.

ONBOARD GRAPHICS

  • 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz12
    Support HDCP 1.4 & 2.3
  • 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
  • Maximum shared memory of 16 GB
  1. Available for the processor with integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.

STORAGE

AMD A520 Chipset

  • 4x SATA 6Gb/s ports
  • 1x M.2 slot (Key M) (from AMD Processor)
    • Supports PCIe 3.0 x4 & SATA 6G/s with Ryzen™ 5000, 5000G, 4000G, 3000 and 3000G processors
    • Supports SATA 6Gb/s with Athlon™ with Radeon™ Vega Graphics processors
    • Supports 2242/ 2260/ 2280 storage devices

RAID

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD A520 Chipset

  • 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

  • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO

Realtek® ALC892/ALC897 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1x Realtek® RTL8111H Gigabit LAN controller

Segítség a hitelfelvételhez!

Adatok
Gyártó:
MSI COMPUTER
Listaár:
20 942 HUF
EAN:
4719072749927
Gyártó:
MSI PCC
Gyártói cikkszám:
A520M-A PRO
Garancia:
36 hónap
EAN:
4719072749927
Kivitel:
Dobozos
Wireless:
Nincs
Párhuzamos port:
Nincs
Soros port:
Nincs
HDMI:
Van
Display Port:
Nincs
D-Sub:
Nincs
Thunderbolt:
Nincs
DVI:
Van
USB 2.0:
2
Memória típus:
DDR4
USB 3.1:
4
USB 3.0:
0
Memória órajel:
3200
Foglalat típusa:
AM4
Chipset gyártó:
AMD
SATA II:
0
SATA III:
4
Quad Channel:
Nincs
M.2 foglalat:
Nincs
Audio:
7.1 HD
Grafikus foglalat:
PCI-Ex16 3.0
Form Factor:
mATX
LAN1:
10/100/1000 Mb/s
Max memória:
32
Memória foglalatok száma:
2
Raid:
Igen
PCI foglalatok száma:
0
PCI-E foglalatok száma:
1
PS/2 Port:
1
Cikkszám:
349459
Tömeg:
750 g/db
