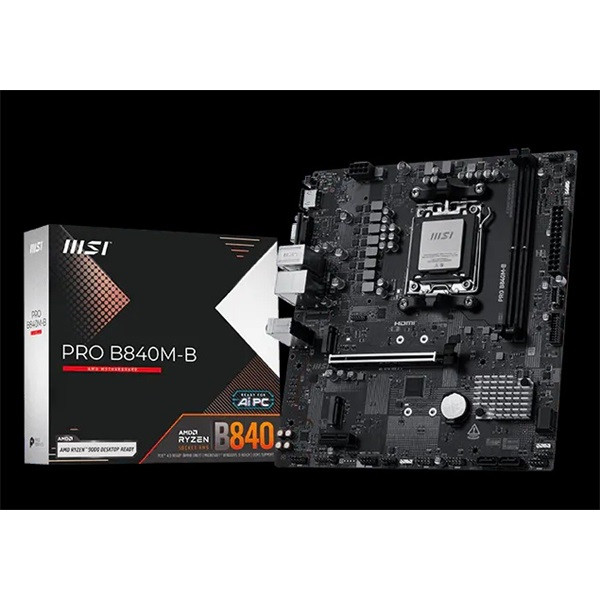

MSI Alaplap AM5 PRO B840M-B AMD B840, mATX
MSI Alaplap AM5 PRO B840M-B AMD B840, mATX
45 370 Ft

MSI Alaplap AM5 PRO B840M-B AMD B840, mATX

MSI Alaplap AM5 PRO B840M-B AMD B840, mATX
MSI Alaplap AM5 PRO B840M-B AMD B840, mATX
Bővebben
Raktáron: 39 db
45 370 Ft
Hitelkalkulátor
Részletek
Chipset AMD B840
CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory 2x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8000+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics 1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E1 slot
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Audio Realtek® ALC897
7.1-Channel High Definition Audio
Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

M2_2 slot
• Supports up to PCIe 4.0 x4
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Segítség a hitelfelvételhez!

Adatok
Gyártó:
MSI COMPUTER
Listaár:
34 900 HUF
EAN:
4711377360166
Gyártó:
MSI PCC
Gyártói cikkszám:
PRO B840M-B
Garancia:
36 hónap
EAN:
4711377360166
Kivitel:
Dobozos
Wireless:
Nincs
Párhuzamos port:
Nincs
Soros port:
Nincs
HDMI:
Van
Display Port:
Nincs
D-Sub:
Van
Thunderbolt:
Nincs
DVI:
Nincs
USB 2.0:
2
Memória típus:
DDR5
USB 3.1:
4
Memória órajel:
8000
Foglalat típusa:
AM5
Chipset gyártó:
AMD
SATA III:
4
Quad Channel:
Nincs
M.2 foglalat:
Van
Audio:
7.1 HD
Grafikus foglalat:
PCI-Ex16
Form Factor:
ATX
LAN1:
100/1000/2500 Mb/s
Max memória:
128
Memória foglalatok száma:
4
Raid:
Alaplapi
PCI foglalatok száma:
0
PCI-E foglalatok száma:
1
VGA integrált:
Nincs
Garancia (hónap):
36
Termék gyártója:
MSI PCC
Cikkszám:
396085
Tömeg:
960 g/db
