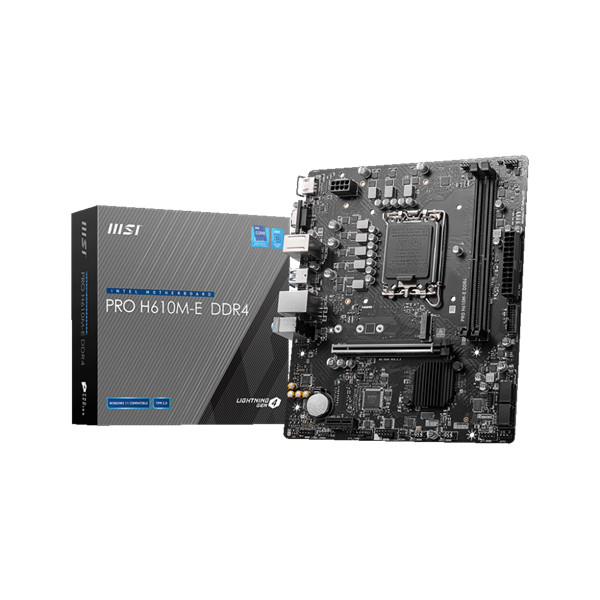

MSI Alaplap S1700 PRO H610M-E DDR4 Intel H610, mATX
MSI Alaplap S1700 PRO H610M-E DDR4 Intel H610, mATX
27 580 Ft

MSI Alaplap S1700 PRO H610M-E DDR4 Intel H610, mATX

MSI Alaplap S1700 PRO H610M-E DDR4 Intel H610, mATX
MSI Alaplap S1700 PRO H610M-E DDR4 Intel H610, mATX
Bővebben
Raktáron: 100 db
27 580 Ft
Hitelkalkulátor
Részletek

PROCESSOR

  • Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1
  • Processor socket LGA1700
  1. Please go to www.msi.com to get the newest support status as new processors are released.

See supported processors

CHIPSET

Intel® H610 Chipset

MEMORY

  • 2x DDR4 memory slots, support up to 64GB 1
  • Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  1. Please refer to www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOT

  • 1x PCIe x16 slot (From CPU)
    • Supports up to PCIe 4.0 x16
  • 1x PCIe x1 slot (From H610 chipset)
    • Supports PCIe 3.0 x1

ONBOARD GRAPHICS

  • 1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2
  • 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2
    1. Available only on processors featuring integrated graphics.
    2. Graphics specifications may vary depending on the CPU installed.

SATA PORTS

  • 4x SATA 6Gb/s ports (From H610 chipset)

M.2 SSD SLOT

  • 1x M.2 slot (Key M) (from CPU)
    • Supports up to PCIe 3.0 x4
    • Supports 2242/ 2260/ 2280 storage devices

AUDIO

Realtek® ALC897 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1x Realtek® RTL8111H 1Gbps LAN controller

POWER CONNECTORS

  • 1x 24-pin ATX main power connector
  • 1x 8-pin +12V power connector

INTERNAL USB CONNECTORS

  • 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
    • Supports additional 2 USB 3.2 Gen 1 5Gbps ports
  • 2x USB 2.0 Type-A connectors (From Hub-GL850G)
    • Supports additional 4 USB 2.0 ports

FAN CONNECTORS

  • 1x 4-pin CPU fan connector
  • 2x 4-pin system fan connectors

SYSTEM CONNECTORS

  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 1x Serial port connector

Segítség a hitelfelvételhez!

Adatok
Gyártó:
MSI COMPUTER
Listaár:
21 209 HUF
EAN:
4711377002660
Gyártó:
MSI PCC
Gyártói cikkszám:
PRO H610M-E DDR4
Garancia:
36 hónap
EAN:
4711377002660
Kivitel:
Dobozos
Wireless:
Nincs
Párhuzamos port:
Nincs
Soros port:
Nincs
HDMI:
Van
Display Port:
Nincs
D-Sub:
Van
Thunderbolt:
Nincs
DVI:
Nincs
Memória típus:
DDR4
USB 3.1:
2
USB 3.0:
4
Memória órajel:
3200
Foglalat típusa:
S1700
Chipset gyártó:
Intel
SATA III:
4
M.2 foglalat:
Van
Audio:
7.1 HD
Grafikus foglalat:
PCI-Ex16 3.0
Form Factor:
mATX
LAN1:
10/100/1000 Mb/s
Max memória:
64
Memória foglalatok száma:
2
Raid:
Nem
PCI foglalatok száma:
0
PCI-E foglalatok száma:
1
Garancia (hónap):
36
Termék gyártója:
MSI PCC
Cikkszám:
336336
Tömeg:
700 g/db
