TP-LINK Video Recorder 16 csatornás, VIGI NVR4016H

Name: TP-LINK Video Recorder 16 csatornás, VIGI NVR4016H
Brand: TP-LINK
SKU: 388730
Price: 480450 HUF
Availability: InStock

Bővebben

Raktáron: 3 db

480 450 Ft

Hitelkalkulátor

Részletek

Video and Audio
IP Video Input	16-Channel
Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	320 Mbps
HDMI Output Resolution	1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Video Output Mode	HDMI/VGA Independent Output
Multi-View Display	1/4/6/8/9/16/25/32/36

DESCODIFICACIÓN
Audio Compression	G.711A/G.711U/G.726
Video Compression	H.265+/H.265/ H.264+/H.264
Record Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Reproducción síncrona	16-Channel
Capacidad	16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP (30 fps)

Record Management
Record Mode	• Manual Recording • Scheduling Recording • Motion Detection Recording
Playback Mode	• Instant Playback • Regular Playback • Tag Playback • Event Playback
Backup Mode	• Regular Backup • Video Clip Backup
Playback Function	• Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off

Red
Protocolo	UPnP (Plug and Play), NTP (Network Timing), TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access	Android, iOS
Web Browser	Chrome (57+), Firefox (52+), Edge (91+)
Interoperability	ONVIF, CGI

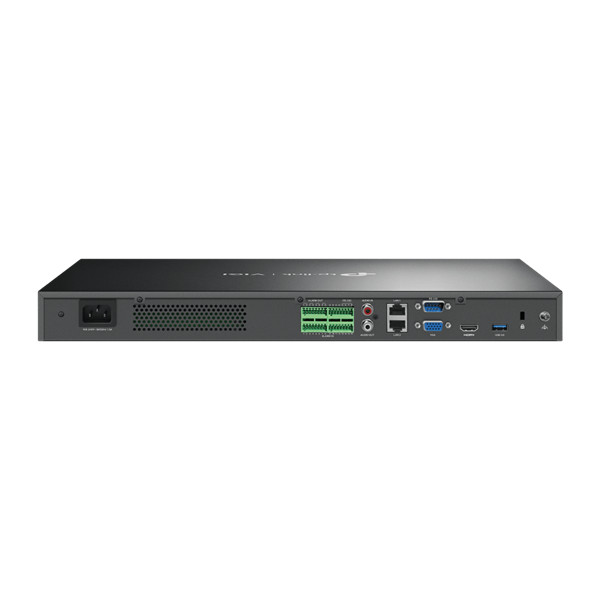

External Interface
Network Interface	2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface	2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port
Audio Interface	1-ch RCA Input; 1-ch RCA Output
Alarm In/Out	16/4
Serial Interface	1, RS232
Power	1× AC Jack
Reset Button	1
Speaker	N/A
eSATA	N/A
HDMI	1
VGA	1

HDD
SATA	4 SATA Interfaces
Capacidad	Up to 10 TB Capacity for Each HDD*

Alarm
General Alarm	• Motion Detection • Video Tampering • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection
Anomaly Alarm	• Video Loss • Offline and IP Conflict • Disk Exception • Login Exception • Fan Exception
Alarm Linkage	• Recording • White Light Alarm • Buzzer • Log • Audible Alarm

GENERAL
Storage Temperature	-40–70 °C
Storage Humidity	10%~90% RH Non-Condensing
Contenido del Paquete	• VIGI Network Video Recorder • Mouse • Installation Guide • Power Cord • HDD Power Cables • HDD Data Cables • Terminal Blocks • Mounting Brackets • Screws • Rubber Feet
Working Temperature	• NVR: -10–55 °C • Power Adapter: 0–40 °C
Working Humidity	10%~90% RH Non-Condensing
Dimensiones	440 × 330 × 44 mm
Fuente de Alimentación Externa	100-240 VAC, 50 to 60HZ, 1.5A
Peso neto	4.0 Kg^#
Peso bruto	5.2 Kg^#
Power Supply	100-240 VAC, 50 to 60HZ, 1.5A
Consumo energético	• 5 W (Without Disk) • 48 W (With Disk)
Certificaciones	CE, EAC, UKCA, RCM, Triman, RoHS, VCCI, FCC, IC, HDMI

Adatok

Gyártó:

TP-LINK

Listaár:

369 570 HUF

EAN:

8885020623666

Gyártó:

TP-LINK

Gyártói cikkszám:

VIGI NVR4016H

Garancia:

36 hónap

EAN:

8885020623666

Garancia (hónap):

Termék gyártója:

TP-LINK

Cikkszám:

388730

Tömeg:

5,42 kg/db
