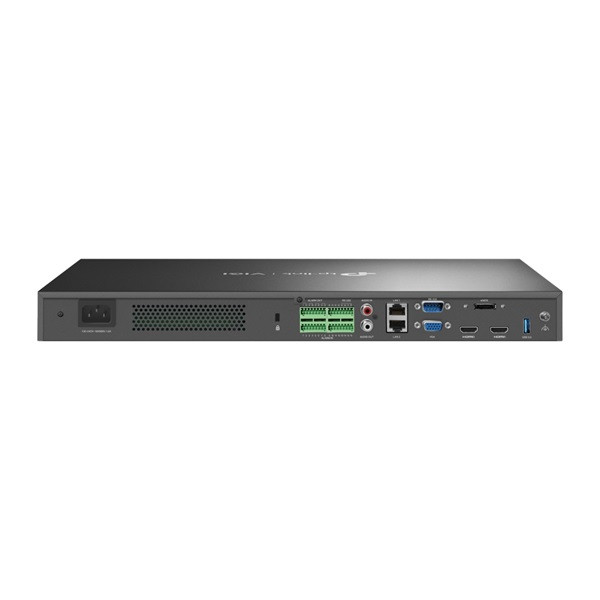

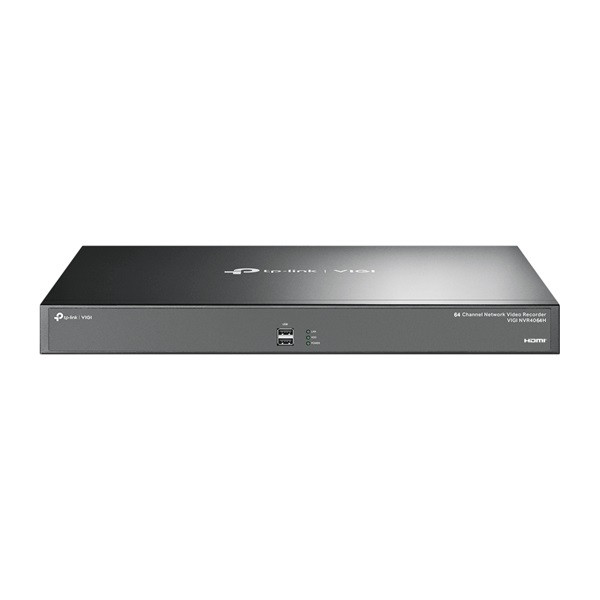

TP-LINK Video Recorder 64 csatornás, VIGI NVR4064H

Name: TP-LINK Video Recorder 64 csatornás, VIGI NVR4064H
Brand: TP-LINK
SKU: 360158
Price: 808330 HUF
Availability: InStock

Bővebben

Raktáron: 1 db

808 330 Ft

Hitelkalkulátor

Részletek

Video and Audio
IP Video Input	64-Channel
Incoming Bandwidth	Default: 260Mbps Extended Bandwidth Mode: 320Mbps
Outgoing Bandwidth	Default: 180Mbps Extended Bandwidth Mode: 320Mbps
HDMI Output Resolution	1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode	HDMI/VGA Independent Output
Multi-View Display	1,4,6,8,9,16,25,32,36,49,64

DECODING
Audio Compression	G.711A/G.711U/G.726
Video Compression	H.265+/H.265/ H.264+/H.264
Record Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	16-Channel^†
Capability	• 25fps: 16-ch@2MP?32-ch@720P?64-ch@D1 • 30fps: 4-ch@8MP?6-ch@5MP?8-ch@4MP

Record Management
Record Mode	• Manual Recording • Scheduling Recording • Motion Detection Recording
Playback Mode	• Instant Playback • Regular Playback • Tag Playback • Event Playback
Backup Mode	• Regular Backup • Video Clip Backup
Playback Function	• Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off

NETWORK
Protocol	UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access	Android, iOS
Web Browser	Chrome (57+), Firefox (52+), Edge (91+)
Interoperability	ONVIF Profile S/T/G, CGI

External Interface
Network Interface	2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface	2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port
Audio Interface	1-ch RCA Input; 1-ch RCA Output
Alarm In/Out	16/4
Serial Interface	1, RS232
Power	1× AC Jack
Reset Button	1
Speaker	N/A
eSATA	1
HDMI	2
VGA	1

HARD DISK
SATA	4 SATA Interfaces
Capacity	Up to 16 TB Capacity for Each HDD*

Alarm
General Alarm	• Motion Detection • Video Tampering • Scene Change Detection • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Abnormal Sound Detection • Smart Frame Note: The alarm function requires the use of a camera.
Anomaly Alarm	• Video Loss • Offline and IP Conflict • Disk Exception • Login Exception • Fan Exception Note: The alarm function requires the use of a camera.
Alarm Linkage	• Recording • White Light Alarm • Buzzer • Log • Audible Alarm Note: The alarm function requires the use of a camera.

GENERAL
Storage Temperature	-40–70 °C
Storage Humidity	10%~90% RH Non-Condensing
Package Contents	• VIGI Network Video Recorder • Mouse • Installation Guide • Power Cord • HDD Power Cables • HDD Data Cables • Terminal Blocks • Mounting Brackets • Screws • Rubber Feet
Working Temperature	• NVR: -10–55 °C
Working Humidity	10%~90% RH Non-Condensing
Dimensions( W X D X H )	440 × 330 × 44 mm
External Power Supply	100-240 VAC, 50 to 60HZ, 1.5A
Net Weight	4.0 Kg^#
Gross Weight	5.0 Kg^#
Power Supply	100-240 VAC, 50 to 60Hz, 1.5A
Power Consumption	• 6.95 W (Without Disk) • 48.38 W (With Disk)
Certifications	CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF

Adatok

Gyártó:

TP-LINK

Listaár:

621 792 HUF

EAN:

4895252500776

Gyártó:

TP-LINK

Gyártói cikkszám:

VIGI NVR4064H

Garancia:

36 hónap

EAN:

4895252500776

Garancia (hónap):

Termék gyártója:

TP-LINK

Cikkszám:

360158

Tömeg:

5,4 kg/db
